1200 A Breaker Panel
Outdoor-rated sheet-metal enclosure, engineered for fabrication
SolidWorksSheet metalDesign for manufacturingFabrication
A 1200-amp breaker panel enclosure for Landco Power, designed to operate outdoors year-round — built to withstand continuous sun, heat, and temperature swings while protecting the equipment inside. Every bend, flange, and mounting feature was modeled in SolidWorks as production-ready sheet metal, engineered to be built rather than just rendered.

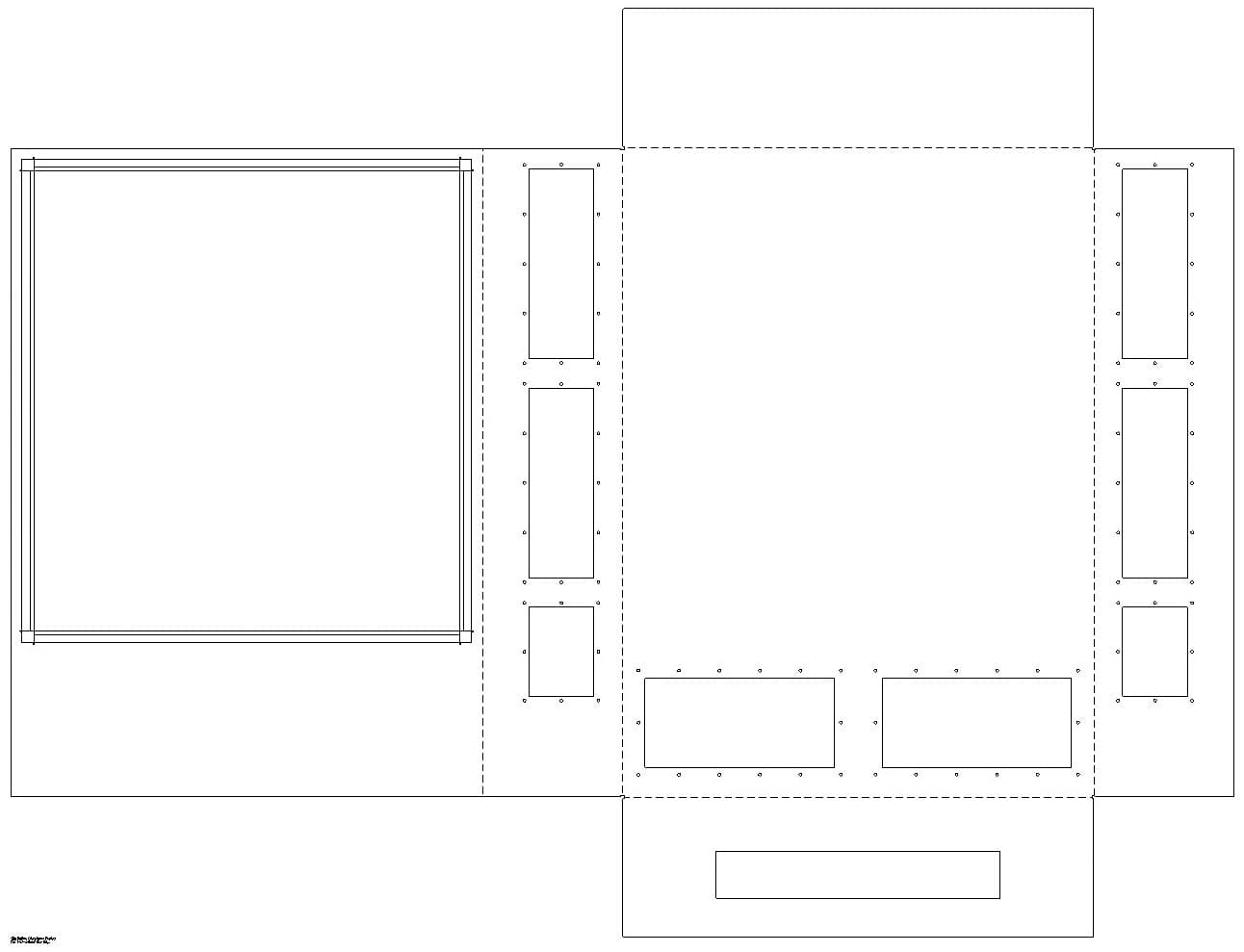

From the model I produced the complete fabrication package — assembly drawings and flat-pattern DXFs ready for the shop. The design has been released and is currently in manufacturing.
- 01Design — Modeled as outdoor-rated production sheet metal
- 02Draw — Produced fab drawings + flat-pattern DXFs
- 03Manufacture — Released to the shop — currently in production
CLIENT
Landco Power
RATING
1200 A breaker panel
STATUS
In manufacturing
